| Brand Name: | Leader |
| Model Number: | SGF |
| MOQ: | 100 square meters |
| Price: | $220.00/square meters >=100 square meters |
| Supply Ability: | 1000 Square Meter/Square Meters per Month |

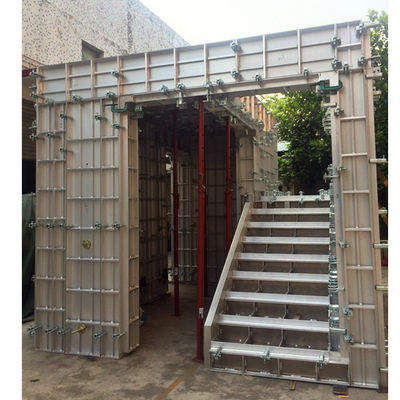

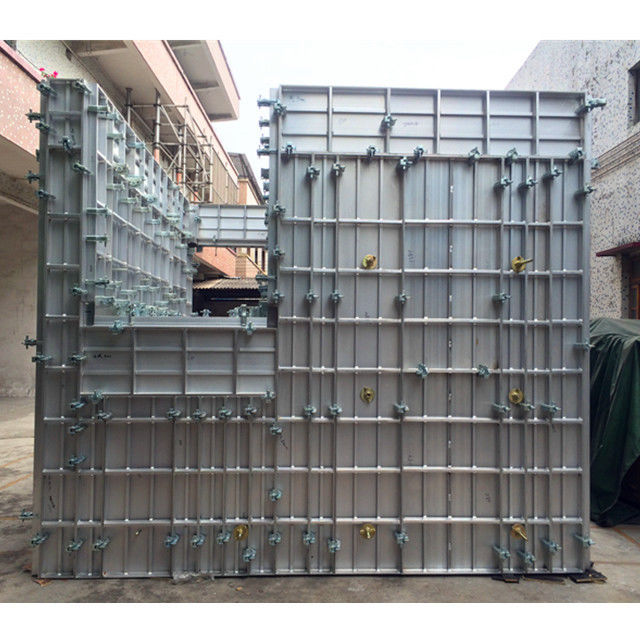

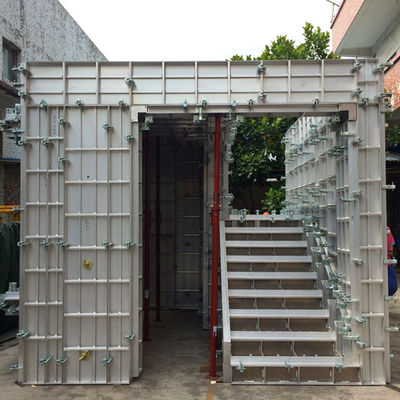

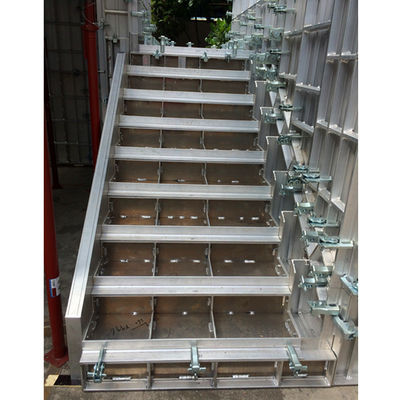

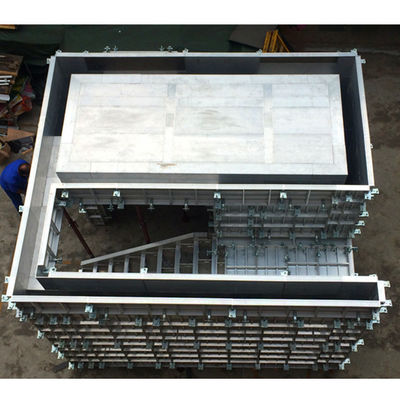

Wall Form Aluminium Construction Modular Formwork System With 4MM Thickness Purchase
Leader Superb Formwork System is an innovated integrated Forming and Shoring System made of light weight strong aluminium, utilizing LEADER’S Unique design Handy SGF Fastener enable reliable tight connections of formwork panels, suitable for Rapid Solutions in Monolithic/Multiple Concreting for complex construction geometry.
|
Product Name: |
Leader SGF Superb Formwork System |
|
Scaffolding Type: |
construction formwork |
|
Place of Origin: |
Guangzhou China |
|
Material |
Aluminum Alloy 6061-T6 |
|
Thickness |
4MM |
|
Weight |
<25kg/sqm |
|
Grade |
Max Workload |
|
Standard Formwork Width (m) |
0.45, 0.4, 0.3, 0.2, 0.15, 0.1 |
|
Standard Formwork Length (m) |
3.0, 2.7, 2.4, 2.1, 1.8, 1.5, 1.2, 0.9, 0.6, 0.3 |
|
The length of Corner Panels |
3.0, 2.7, 2.4, 2.1, 1.8, 1.5, 1.2, 0.9, 0.6, 0.3 |
Prominent Features1) ideal for monolithic concreting and first choice for live efficient concrete pouring.
2) smooth panel surface complies class 5 concrete standard .
3) panel walls could be lifted up entirely without deformations .
4) larhe fastening position enable much higher efficient grip connectors compare to pin connectors.
5) stiffener design allow panels to sustain conerete pressure up to 60KN/M2
6) panels use up to 300-500 times under proper utilization.
7) fastener durable reuses up to 1000-5000 times.
8) formwork panels could be tailer made to match most construction requirement.
9) maximum panels widht 600mm enable lower panel cost.
Our factory is strictly in accordance with ISO9001 certification , product safety and rest assured.
Guangzhou Leader Equipment Ltd. is a manufacturer with enormous experience proven expertise and capabilities in manufacturing and supplying Formwork and Scaffolding Systems. All products have Self Owned Patents, these include Leader’s SGF Superb Formwork System, GN50 Omni Scaffolding System, AMP Aluminium Prop & Panel Slab Formwork System, FRP Fiberglass Mobile Scaffold Towers, Aluminium Protection Net System, and also Personnel Access Equipment etc.
Our scaffold and formwork will be strictly inspected before packing and shipping out to insure that they could be satisfied with you.
Q: Are you a factory or trading company?
A: Professional Factory
Q: Where is your factory located? How can I visit there?
A: Leader is located in Guangzhou City, China, It takes only 40 minutes drive from Bai Yun International Airport. You are welcome to visit us!
Q: What is your product range?
A: Guangzhou Leader Equipment Ltd. is a manufacturer specialize in professional design and production of GN50 Aluminum & Steel Scaffold, Fiberglass Scaffolding, Aluminum Shoring & Slab Panel Formwork System, Superb Formwork System and Aerial Working Platforms etc.
Q: Do you accept OEM?
A: OEM is acceptable.
Q: What Payment terms do us accept?
A: T/T in advance (100%, 30% deposit+70% before shipment), LC.
