Mobile Scaffold Tower
Created with Pixso.

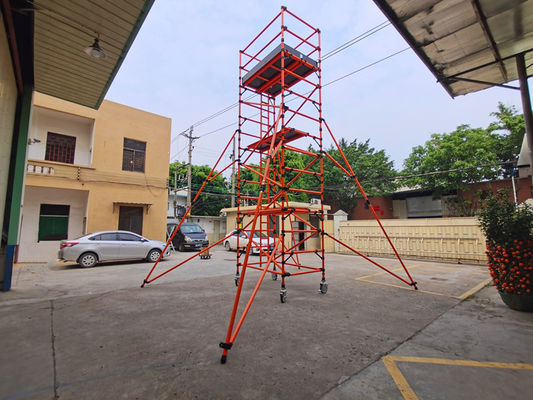

Leader GRP Fiberglass Narrow Mobile Scaffold Tower Fire Proof Anti Oxidation

Leader GRP Fiberglass Narrow Mobile Scaffold Tower Fire Proof Anti Oxidation

Brand Name: Leader
Model Number: FRP
Price: $1,800.00/sets >=1 sets
Supply Ability: 30 Set/Sets per Month
Detail Information
Place of Origin:
Guangdong, China
Type:
GRP Glass Re-enforced Scaffolding Tower
Warranty:
1 Year
After-sale Service:
Online Technical Support, Onsite Installation, Onsite Training, Return And Replacement
Project Solution Capability:
Graphic Design, 3D Model Design, Total Solution For Projects
Application:
Power Plant, Electrical Engineering
Design Style:
Modern
Name:
GRP Scaffold Towers
Material:
Fiberglass Reinforce Resin
Certificate:
CE Certificate
Standard:
EN1004:2004
Thickness:
2.8mm
Diameter:
50.6mm
Load Capacity:
200kg/sqm
Height:
2-20m
Width:
850,1450mm
Port:
Guangzhou
Packaging Details:
Dry Cargo Container or wooden packing
Highlight:

Narrow Mobile Scaffold Tower Fire Proof

,

Narrow Mobile Scaffold Tower Anti Oxidation

,

GRP Fiberglass Narrow Mobile Scaffold Tower

Product Description

 Leader GRP Fiberglass Narrow Mobile Scaffolding Tower In UK With EN1004 2004 Standard



Product Description

We are a professional manufacturer and supplier of FRP/GRP scaffolding for more than ten years. The width of fiberglass insulation scaffold can be divided into two specifications, single width 0.85 meters and double width 1.45 meters. It has the characteristics of non-conductive, fire-proof, anti-oxidation, corrosion resistance and easy installation. Commonly used in power stations and oil refineries. Widely accepted by users.

 Leader GRP Fiberglass Narrow Mobile Scaffold Tower Fire Proof Anti Oxidation 0

Product Details

  Leader GRP Fiberglass Narrow Mobile Scaffold Tower Fire Proof Anti Oxidation 1

Trapdoor Platform

Trapdoor Platform is convenient for the staff to board the tower to ensure safe work.



Diagonal Structs

Built-in diagonal struts minimize frame deformation and enable additional rigidlty and best Stability.



Spring Fastener

The frame can be quickly locked to improve security.



Non-Decending Joints

Patented unique stable wedge design assures Anti-Fall Connection with Superior Stable Fail Safe Performance distinguished overwhelms any other fiberglass scaffold tower.



Built-in Ladder

Most Convenient Built-in Ladder, which reduce the quantity of componetns ultilize at same height and also ensures safety ladder access for operators.



Horizontal/diagonal Braces

The self-locking crossbar and diagonal bar buckle design is convenient for quick construction.



Stabilizers

The stabilizers could be attached easily by clamp locks to increase the stability of the tower.



Castor

Castors are durable and toughly fabricated.



Specification for Zone 1 FRP Fibreglass Scaffold Mobile Tower





Leader GRP Fiberglass Narrow Mobile Scaffold Tower Fire Proof Anti Oxidation 2Dimensions: Single Width Tower 500 Series 0.85m(W)*1.8m/2.5m(L), 460 Series 0.75(W)*2.0/2.5m(L)

* Suitable for Working in limited Space.

* Option to be equiped with Vertical or incline Ladders and Clip on ladders.

* Compact Design easily pass through normal doors or pedestrian access.

Light, Solid & Compact size, Easy Assemble & Dismantle, Easy Loading by small trucks.

500
Series

Working

Height (m)

4.1 4.6 5.1 6.1 6.6 7.1 7.6 8.2 8.7 9.2 10.2 10.7 11.2 11.7 12.2 12.7 13.2 13.7

Platform

Height (m)

2.1 2.6 3.1 4.1 4.6 5.1 5.6 6.2 6.7 7.2 8.2 8.7 9.2 9.7 10.2 10.7 11.2 11.7



460
Series
Working Height (m) 4.34 4.81 5.27 5.73 6.20 6.66 7.13 7.59 8.05 8.52 8.98 9.45 9.91 10.37 10.84 11.30 11.77 12.23

Platform

Height (m)

2.34 2.81 3.27 3.73 4.20 4.66 5.13 5.59 6.05 6.52 6.98 7.45 7.91 8.37 8.84 9.30 9.77 10.23

Dimensions: Double Width Tower 500 Series 1.45m(W)*1.8m/2.5m(L), 460 Series 1.35(W)*2.0/2.5m(L)

* Suitable for Construction and Industrial Usages.

* Vertical ladder structure provides maximum work space and reduces the erection time.

* Proper combination of design with greater flexibility to improve utilization efficiency.


500
Series

Working

Height (m)

4.1 4.6 5.1 6.1 6.6 7.1 7.6 8.2 8.7 9.2 10.2 10.7 11.2 11.7 12.2 12.7 13.2 13.7

Platform

Height (m)

2.1 2.6 3.1 4.1 4.6 5.1 5.6 6.2 6.7 7.2 8.2 8.7 9.2 9.7 10.2 10.7 11.2 11.7
460
Series
Working Height (m) 4.34 4.81 5.27 5.73 6.20 6.66 7.13 7.59 8.05 8.52 8.98 9.45 9.91 10.37 10.84 11.30 11.77 12.23

Platform

Height (m)

2.34 2.81 3.27 3.73 4.20 4.66 5.13 5.59 6.05 6.52 6.98 7.45 7.91 8.37 8.84 9.30 9.77 10.23



Certificate

Fiberglass scaffold tower is Non-conductive, non-sparking, non-corroding and non-oxidising. Easy to clean & comfortable to handle in all climates. All our range of fibreglass scaffold towers are fully compliant with BSEN1004.





Certification

Innovative Patented Mobile Fiberglass Scaffold Tower with European CE certification ensures product deflection according to DIN4422, DIN4420 and design comply with European Standard EN1004:2004, certified by China National Electric Industry Quality Safety Equipment Control & Testing Centre.

Moreover, Leader's factory achieved certification with ISO 9001 International Quality Management Standard to evidence and guarantee this optimum Fiberglass Mobile Scaffold Tower System offer excellent stable performance with highest safety.

Leader GRP Fiberglass Narrow Mobile Scaffold Tower Fire Proof Anti Oxidation 3



Company Information

Guangzhou Leader Equipment Ltd. is a manufacturer with enormous experience proven expertise and capabilities in manufacturing and supplying Formwork and Scaffolding Systems.  All products have Self Owned Patents, these include Leader’s SGF Superb Formwork System, GN50 Omni Scaffolding System, AMP Aluminium Prop & Panel Slab Formwork System, FRP Fiberglass Mobile Scaffold Towers, Aluminium Protection Net System, and also Personnel Access Equipment etc.

Leader GRP Fiberglass Narrow Mobile Scaffold Tower Fire Proof Anti Oxidation 4

Packaging & Shipping

Our scaffold and formwork will be strictly inspected before packing and shipping out to insure that they could be satisfied with you.

Leader GRP Fiberglass Narrow Mobile Scaffold Tower Fire Proof Anti Oxidation 5

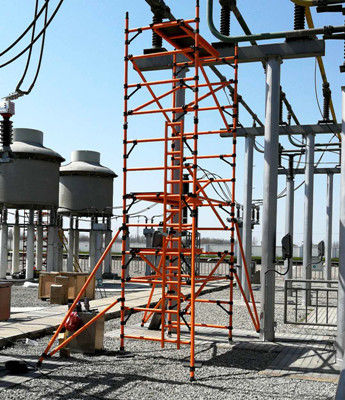

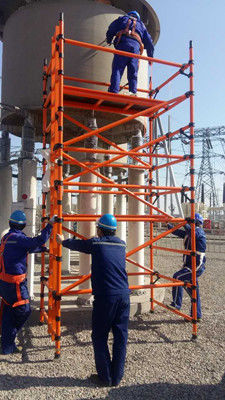

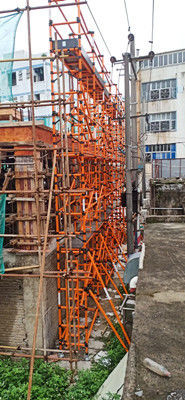

Successful Case

 Leader GRP Fiberglass Narrow Mobile Scaffold Tower Fire Proof Anti Oxidation 6Leader GRP Fiberglass Narrow Mobile Scaffold Tower Fire Proof Anti Oxidation 7

Licenses and Qualify

 Leader GRP Fiberglass Narrow Mobile Scaffold Tower Fire Proof Anti Oxidation 8

FAQ

Q: Are you a factory or trading company?

A: Professional Factory



Q: Where is your factory located? How can I visit there?

A: Leader is located in Guangzhou City, China, It takes only 40 minutes drive from Bai Yun International Airport. You are welcome to visit us!



Q: What is your product range?

A: Guangzhou Leader Equipment Ltd. is a manufacturer specialize in professional design and production of GN50 Aluminum & Steel Scaffold, Fiberglass Scaffolding, Aluminum Shoring & Slab Panel Formwork System, Superb Formwork System and Aerial Working Platforms etc.



Q: Do you accept OEM?

A: OEM is acceptable.



Q: What Payment terms do us accept?

A: T/T in advance (100%, 30% deposit+70% before shipment), LC.
