| Brand Name: | LEADER |
| Model Number: | GN50 |
| Price: | $1,200.00/sets >=1 sets |
| Supply Ability: | 60 Set/Sets per Month Premium Access Solutions Aluminum Alloy Scaffold Tower for Work |

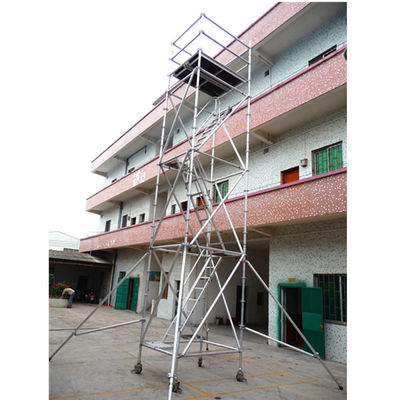

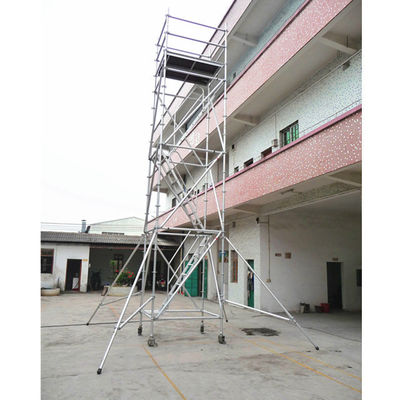

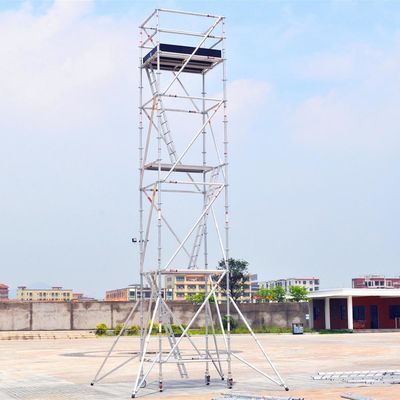

This is one of our new designed products -- Universal Aluminum Scaffold. Its latest unique extraordinary multi-directional design, lightest weight, robust connecting joints, exceptionally great loading capacity, without height limitation, safe and speedy erection and dismantling features enable the system capable of being utilized on any indoor or outdoor space-constrained working environments with complicated scaffold requirement.
|
Product Name: |
Aluminum ring lock access tower |
|
Scaffolding Type: |
Weld Free Tubular Design Aluminium Scaffolding |
|
Place of Origin: |
Guangzhou China |
|
Material |
Aluminum Alloy 6082-T6 |
|
Main Tube |
Tube Wall Thickness: 1.8MM, 3.2MM; Pipe Diameter: 50.8MM |
|
Size(WxL) |
085m(W)*2.0m/2.5m/3.0m(L); 1.45m(W)*2.0m/2.5m/3.0m(L) |
|
Height |
2-50m |
|
Colour |
Silver |
|
Load Capacity |
200kg/sqm |
|
Certification |
CE& GS Certification |
|
Standard |
EN1004;EN12810; EN12811 |
|
Application |

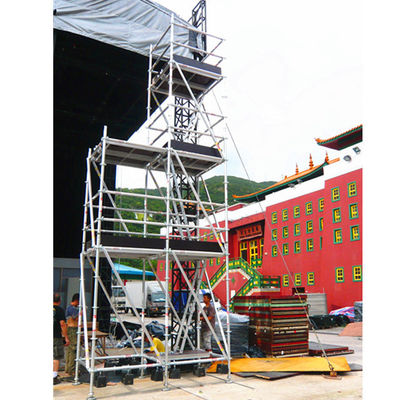

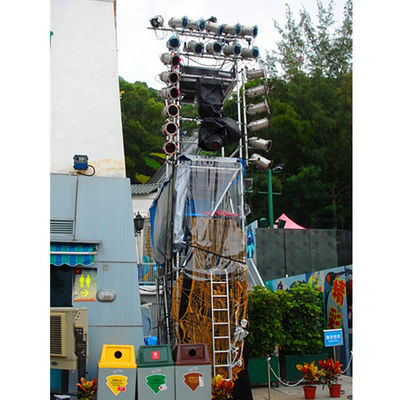

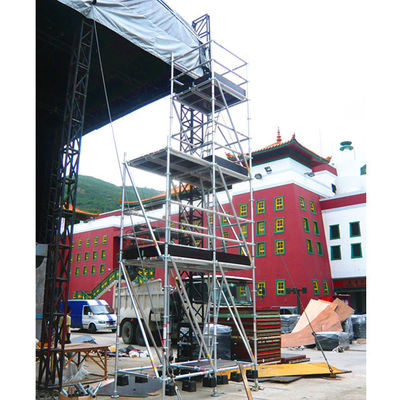

Used in making advertising, painting ceiling, building construction, cleaning, repairing, suspending scaffolding, cantilever rack, bridging frame, curved frame and stage rack |
| No Welding Scaffolding System |
Patent fail safe joint design Anti-rolling connector desig |
Highest horizontal force and joint resistance |
2. GN50 Patent Fail Safe Joint Design.
1) Fail Safe Joint Design excludes the downward movement and entirely changes the load distribution mode of conventional metal scaffold.
2) All load on the braces are instantaneous transported on the connector instead of onto the vertical standards.
3) Loads are transfer to centre of tube to give firm and tight connection.
+ No Welding Design of GN50 Scaffold System supports it to be a Low Carbon product.
3. All-Round Multi-Directional Design
All-Round Multi-Directional design allows full omni functions and prominence in constructing various scaffolding with complicated construction geometry cost effectively.
4. GN50 Installation Procedures
Leader GN50 tubular aluminium scaffolding system eliminates time consuming layout procedures, speedy assemble and dismantle is ensured as the connector insert hole patterns are in right angles and precisely aligned. connections between horizontal, diagonal, level braces and the vertical standards are designed for speedy erection.
|
Position bracing to Connector. |
Wedge housing pushed over on the connector. |
Hammer the wedge of the bracing into the Connector for Tight connections. |
Leader GN50 Omni Scaffolding System is a Patented Scaffolding System with design complies with Global Standards BS1139, EN12810, EN12811 and EN1004:2004 etc. The system has acquired CE certificate and GS certified by TUV Rheinland. Leader's manufacturing factory achieved certification with ISO 9001 International Quality Management Standard to evidence and guarantee GN50 Scaffolding System offers excellent performance with highest safety.
Guangzhou Leader Equipment Ltd. is a manufacturer with enormous experience proven expertise and capabilities in manufacturing and supplying Formwork and Scaffolding Systems. All products have Self Owned Patents, these include Leader’s SGF Superb Formwork System, GN50 Omni Scaffolding System, AMP Aluminium Prop & Panel Slab Formwork System, FRP Fiberglass Mobile Scaffold Towers, Aluminium Protection Net System, and also Personnel Access Equipment etc.
Our scaffold and formwork will be strictly inspected before packing and shipping out to insure that they could be satisfied with you.
Multi-direction design; adapted to any complicated construction environment:
Users can make a flexible combination erection according to special maintenance or operation in different terrain environment.
Q: Are you a factory or trading company?
A: Professional Factory
Q: Where is your factory located? How can I visit there?
A: Leader is located in Guangzhou City, China, It takes only 40 minutes drive from Bai Yun International Airport. You are welcome to visit us!
Q: What is your product range?
A: Guangzhou Leader Equipment Ltd. is a manufacturer specialize in professional design and production of GN50 Aluminum & Steel Scaffold, Fiberglass Scaffolding, Aluminum Shoring & Slab Panel Formwork System, Superb Formwork System and Aerial Working Platforms etc.
Q: Do you accept OEM?
A: OEM is acceptable.
Q: What Payment terms do us accept?
A: T/T in advance (100%, 30% deposit+70% before shipment), LC.
