| Brand Name: | Leader |
| Model Number: | FRP |
| MOQ: | 2 sets |
| Price: | $1,800.00/sets >=2 sets |
| Supply Ability: | 30 Set/Sets per Month |

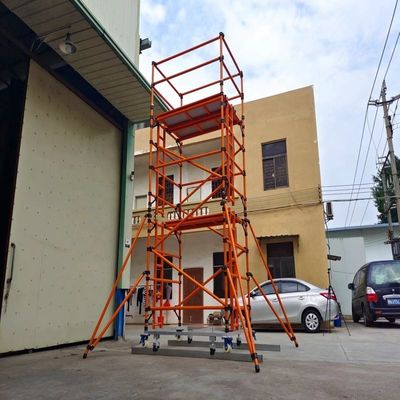

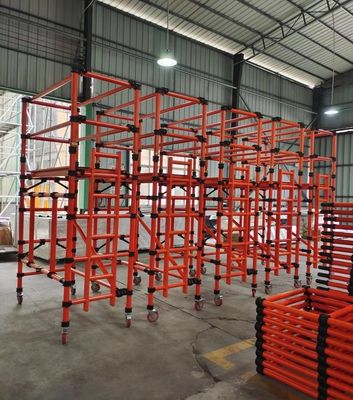

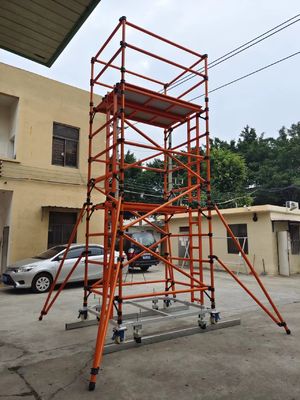

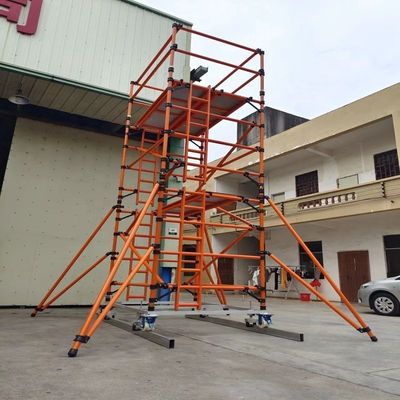

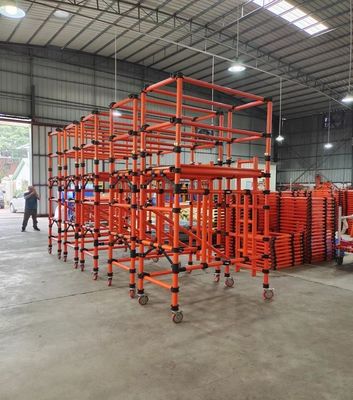

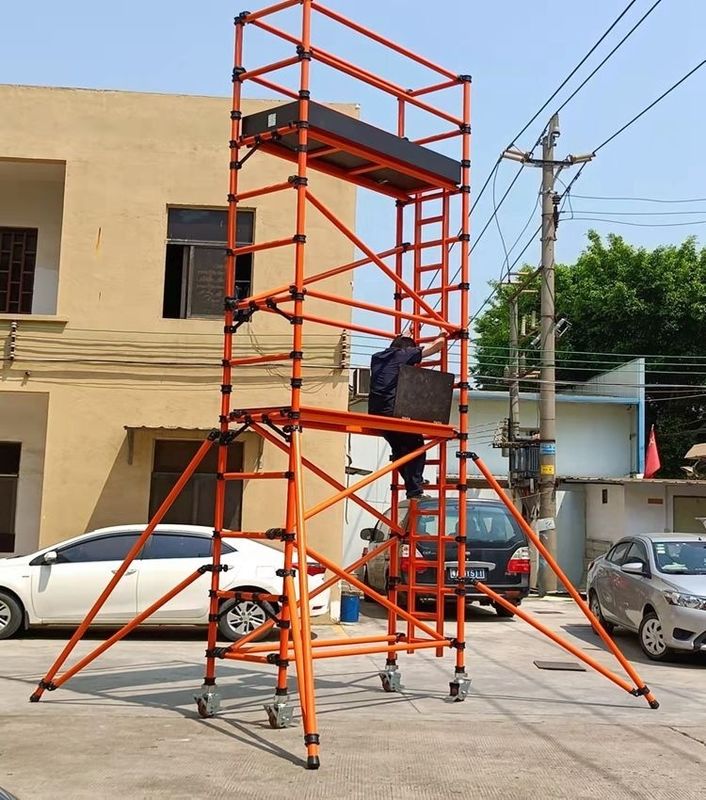

2-20m Insulated Glass Fiber Reinforced Polyester GRP FRP Mobile Scaffolding Tower For Electrical Engineering
We are a professional manufacturer and supplier of FRP/GRP scaffolding for more than ten years. The width of fiberglass insulation scaffold can be divided into two specifications, single width 0.85 meters and double width 1.45 meters. It has the characteristics of non-conductive, fire-proof, anti-oxidation, corrosion resistance and easy installation. Commonly used in power stations and oil refineries. Widely accepted by users.
Trapdoor Platform
Trapdoor Platform is convenient for the staff to board the tower to ensure safe work.
Diagonal Structs
Built-in diagonal struts minimize frame deformation and enable additional rigidlty and best Stability.
Spring Fastener
The frame can be quickly locked to improve security.
Non-Decending Joints
Patented unique stable wedge design assures Anti-Fall Connection with Superior Stable Fail Safe Performance distinguished overwhelms any other fiberglass scaffold tower.
Built-in Ladder
Most Convenient Built-in Ladder, which reduce the quantity of componetns ultilize at same height and also ensures safety ladder access for operators.
Horizontal/diagonal Braces
The self-locking crossbar and diagonal bar buckle design is convenient for quick construction.
Stabilizers
The stabilizers could be attached easily by clamp locks to increase the stability of the tower.
Castor
Castors are durable and toughly fabricated.
Specification for Zone 1 FRP Fibreglass Scaffold Mobile Tower
Dimensions: Single Width Tower 500 Series 0.85m(W)*1.8m/2.5m(L), 460 Series 0.75(W)*2.0/2.5m(L)
* Suitable for Working in limited Space.
* Option to be equiped with Vertical or incline Ladders and Clip on ladders.
* Compact Design easily pass through normal doors or pedestrian access.
Light, Solid & Compact size, Easy Assemble & Dismantle, Easy Loading by small trucks.
| 500 Series |
Working Height (m) |
4.1 | 4.6 | 5.1 | 6.1 | 6.6 | 7.1 | 7.6 | 8.2 | 8.7 | 9.2 | 10.2 | 10.7 | 11.2 | 11.7 | 12.2 | 12.7 | 13.2 | 13.7 |
|
Platform Height (m) |
2.1 | 2.6 | 3.1 | 4.1 | 4.6 | 5.1 | 5.6 | 6.2 | 6.7 | 7.2 | 8.2 | 8.7 | 9.2 | 9.7 | 10.2 | 10.7 | 11.2 | 11.7 |
| 460 Series |
Working Height (m) | 4.34 | 4.81 | 5.27 | 5.73 | 6.20 | 6.66 | 7.13 | 7.59 | 8.05 | 8.52 | 8.98 | 9.45 | 9.91 | 10.37 | 10.84 | 11.30 | 11.77 | 12.23 |
|
Platform Height (m) |
2.34 | 2.81 | 3.27 | 3.73 | 4.20 | 4.66 | 5.13 | 5.59 | 6.05 | 6.52 | 6.98 | 7.45 | 7.91 | 8.37 | 8.84 | 9.30 | 9.77 | 10.23 |
Dimensions: Double Width Tower 500 Series 1.45m(W)*1.8m/2.5m(L), 460 Series 1.35(W)*2.0/2.5m(L)
* Suitable for Construction and Industrial Usages.
* Vertical ladder structure provides maximum work space and reduces the erection time.
* Proper combination of design with greater flexibility to improve utilization efficiency.
| 500 Series |
Working Height (m) |
4.1 | 4.6 | 5.1 | 6.1 | 6.6 | 7.1 | 7.6 | 8.2 | 8.7 | 9.2 | 10.2 | 10.7 | 11.2 | 11.7 | 12.2 | 12.7 | 13.2 | 13.7 |
|
Platform Height (m) |
2.1 | 2.6 | 3.1 | 4.1 | 4.6 | 5.1 | 5.6 | 6.2 | 6.7 | 7.2 | 8.2 | 8.7 | 9.2 | 9.7 | 10.2 | 10.7 | 11.2 | 11.7 |
| 460 Series |
Working Height (m) | 4.34 | 4.81 | 5.27 | 5.73 | 6.20 | 6.66 | 7.13 | 7.59 | 8.05 | 8.52 | 8.98 | 9.45 | 9.91 | 10.37 | 10.84 | 11.30 | 11.77 | 12.23 |
|
Platform Height (m) |
2.34 | 2.81 | 3.27 | 3.73 | 4.20 | 4.66 | 5.13 | 5.59 | 6.05 | 6.52 | 6.98 | 7.45 | 7.91 | 8.37 | 8.84 | 9.30 | 9.77 | 10.23 |
Certificate
Fiberglass scaffold tower is Non-conductive, non-sparking, non-corroding and non-oxidising. Easy to clean & comfortable to handle in all climates. All our range of fibreglass scaffold towers are fully compliant with BSEN1004.
Innovative Patented Mobile Fiberglass Scaffold Tower with European CE certification ensures product deflection according to DIN4422, DIN4420 and design comply with European Standard EN1004:2004, certified by China National Electric Industry Quality Safety Equipment Control & Testing Centre.
Moreover, Leader's factory achieved certification with ISO 9001 International Quality Management Standard to evidence and guarantee this optimum Fiberglass Mobile Scaffold Tower System offer excellent stable performance with highest safety.
Guangzhou Leader Equipment Ltd. is a manufacturer with enormous experience proven expertise and capabilities in manufacturing and supplying Formwork and Scaffolding Systems. All products have Self Owned Patents, these include Leader’s SGF Superb Formwork System, GN50 Omni Scaffolding System, AMP Aluminium Prop & Panel Slab Formwork System, FRP Fiberglass Mobile Scaffold Towers, Aluminium Protection Net System, and also Personnel Access Equipment etc.
Our scaffold and formwork will be strictly inspected before packing and shipping out to insure that they could be satisfied with you.
Q: Are you a factory or trading company?
A: Professional Factory
Q: Where is your factory located? How can I visit there?
A: Leader is located in Guangzhou City, China, It takes only 40 minutes drive from Bai Yun International Airport. You are welcome to visit us!
Q: What is your product range?
A: Guangzhou Leader Equipment Ltd. is a manufacturer specialize in professional design and production of GN50 Aluminum & Steel Scaffold, Fiberglass Scaffolding, Aluminum Shoring & Slab Panel Formwork System, Superb Formwork System and Aerial Working Platforms etc.
Q: Do you accept OEM?
A: OEM is acceptable.
Q: What Payment terms do us accept?
A: T/T in advance (100%, 30% deposit+70% before shipment), LC.
