| Brand Name: | Leader |
| Model Number: | FRP FIBERGLASS SCAFFOLDING |
| Price: | $1,200.00/sets >=1 sets |
| Supply Ability: | 30 Set/Sets per Month fiber glass scaffolding |

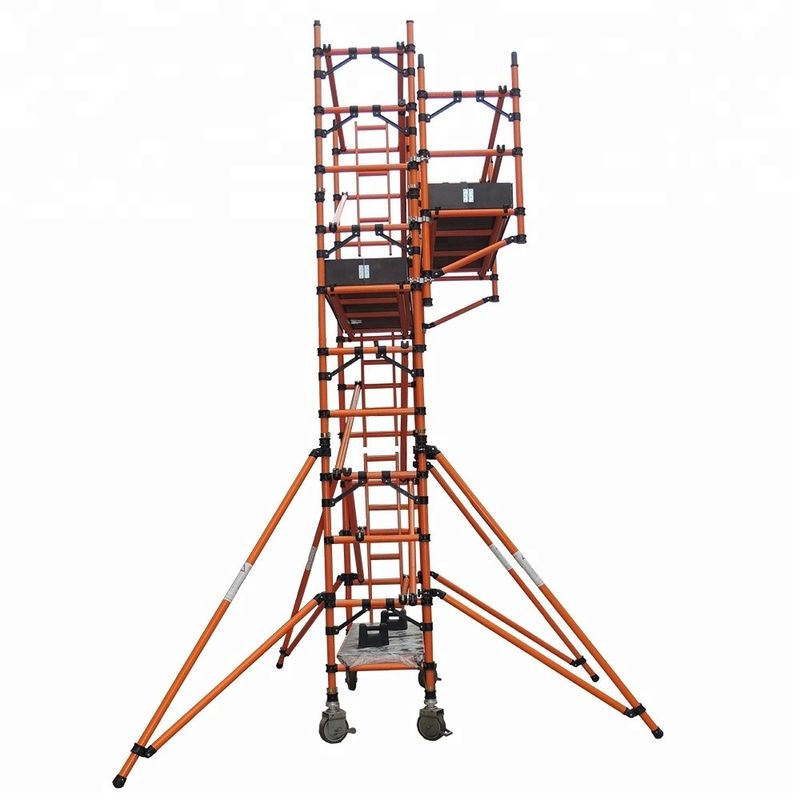

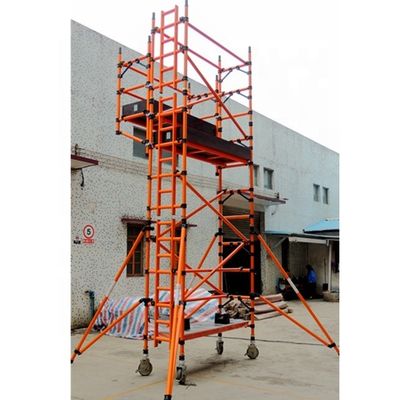

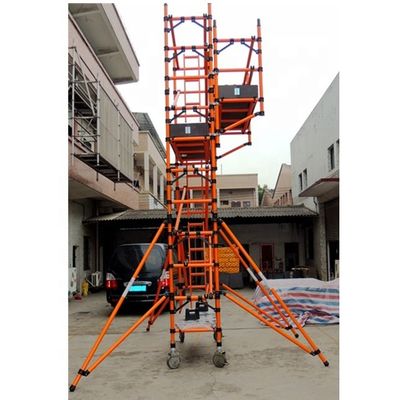

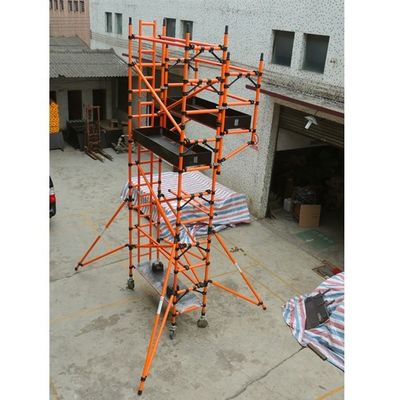

Leader GRP Suspended Scaffold Tower Frames Build In Vertical Ladder For Smooth Ascent
Fibreglass is lightweight, strong, versatile and non-conductive making it perfect for offshore, food, retail or conservation sites.
Leader fiberglass mobile scaffold towers are fabricated and constructed with unique patented fail safe joint design. Patented unique stable wedge design assures anti-fail connection with superior stable fail safe performance distinguished overwhelms any other similar products.
If you are looking for Zone One tested, chemical, weather and spark resistant access then we can help with our wide range of bespoke solutions.
|
Product Name: |
Leader Fiberglass Mobile Scaffold Towers |
|
Scaffolding Type: |
Ladder Frame Mobile Scaffold |
|
Place of Origin: |
Guangzhou China |
|
Material |
Fiberglass |
|
Main Tube |
Tube Wall Thickness: 2.8MM; Pipe Diameter: 50.6MM |
|
Size(WxL) |
0.75m(W)*2.0m/2.5m(L); 1.35m(W)*2.0m/2.5m(L) 0.85m(W)*1.8m/2.5m(L); 1.45m(W)*1.8m/2.5m(L) |
|
Height |
2-12m |
|
Floors |
3 floor,4floor,5floor is up to you |
|
Colour |
Orange |
|
Load Capacity |
200kg/sqm |
|
Certification |
CE Certification |
|
Standard |
EN1004 |
|
Application |
Used in Electrical Engineering, Railway and Power Generation Engineering Work, Chemical Industry, Food, Medical and Drug Manufacturer. |
Outstanding Features
1. Tube is made of polyester resin random composite with fiber glass filament giving higher strength piping.
2. Standard tube thickness 2.8mm x 50.6mm dia. For mobile tower up to 12m with high rigidity.
3. Fail safe T-joint design en-strengthened with PU type adhesive.
4. PU adhesive with strong adhesive and cured only by absorbing atmosphere moisture.
5. Applying adhesive thorough one injection inlet only and full adhesive apply quantity justified by employing the adhesive coming out from the other outgoing side.
6. All bracing ledger are binding with grip holder by applying PU adhesive through injection inlet.
7. Promising to erect up to 12 meter at 200 kg/m2 with best rigidity.
8. Compliance to EN1004, CE and Chinese Standard for electrical utilities.
9. High fiber glass content for components>20%
Detailed Images
Best in Structure
1. Structural components made by fiberglass Reinforce Nylon material with High Yield Stress and strain to resist strong impact force.
2. Main tube made by fiberglass reinforce resin material with high tensile strength.
3. Insulation scaffolding for easy operation, safest and highest rigidity utilizing worldwide.
Non-Decending Joints
Patented unique stable wedge design assures Anti-Fall Connection with Superior Stable Fail Safe Performance distinguished overwhelms any other similar products.
Diagonal Struts
Built in diagonal struts minimize frame deformation and enable additional rigidity and best stability.
Innovative Patented Mobile Fiberglass Scaffold Tower with European CE certification ensures product deflection according to DIN4422, DIN4420 and design comply with European Standard EN1004:2004, certified by China National Electric Industry Quality Safety Equipment Control & Testing Centre.
Moreover, Leader's factory achieved certification with ISO 9001 International Quality Management Standard to evidence and guarantee this optimum Fiberglass Mobile Scaffold Tower System offer excellent stable performance with highest safety.
Guangzhou Leader Equipment Ltd. is a manufacturer with enormous experience proven expertise and capabilities in manufacturing and supplying Formwork and Scaffolding Systems. All products have Self Owned Patents, these include Leader’s SGF Superb Formwork System, GN50 Omni Scaffolding System, AMP Aluminium Prop & Panel Slab Formwork System, FRP Fiberglass Mobile Scaffold Towers, Aluminium Protection Net System, and also Personnel Access Equipment etc.
Our scaffold and formwork will be strictly inspected before packing and shipping out to insure that they could be satisfied with you.
