| Brand Name: | Leader |
| Model Number: | FRP |
| Price: | $1,200.00/sets >=1 sets |
| Supply Ability: | 25 Set/Sets per Month genie scaffolding fiberglass |

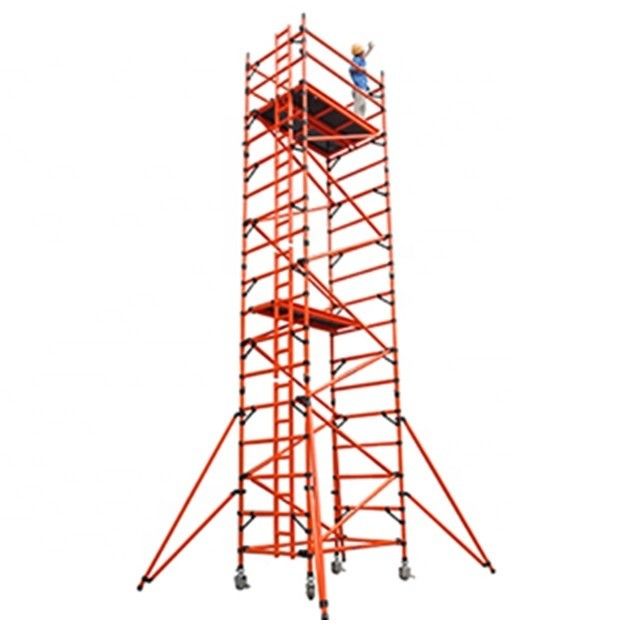

Electrically Charged Environments GRP Fiberglass Mobile Scaffolding Tower Risk Areas
Leader Fiberglass Mobile Scaffold Towers are fabricated and constructed with unique patented Fail Safe Joint Design.The unique non decending joint design entirely eliminate the problem of using unsecured adhesive binding for conventional GRP Towers and totally avoid disconnection of joints thus ensuring highest safety and best rigid structure among the insulation scaffolds ever existing.
|
Product Name: |
Leader Fiberglass Mobile Scaffold Towers |
|
Scaffolding Type: |
Ladder Frame Mobile Scaffold |
|
Place of Origin: |
Guangzhou China |
|
Material |
Fiberglass |
|
Main Tube |
Tube Wall Thickness: 2.8MM; Pipe Diameter: 50.6MM |
|
Size(WxL) |
0.75m(W)*2.0m/2.5m(L); 1.35m(W)*2.0m/2.5m(L) 0.85m(W)*1.8m/2.5m(L); 1.45m(W)*1.8m/2.5m(L) |
|
Height |
2-12m |
|
Floors |
3 floor,4floor,5floor is up to you |
|
Colour |
Orange |
|
Load Capacity |
200kg/sqm |
|
Certification |
CE Certification |
|
Standard |
EN1004 |
|
Application |
Used in Electrical Engineering, Railway and Power Generation Engineering Work, Chemical Industry, Food, Medical and Drug Manufacturer. |
Prominent Features
For Zone 1 —— Explosive Atmosphere Risk Area
1. Non-Conductive
2.Corrosive Resistance
3. Anti-Oxidising
4. Non-Sparking
Detailed Images
Best in Structure

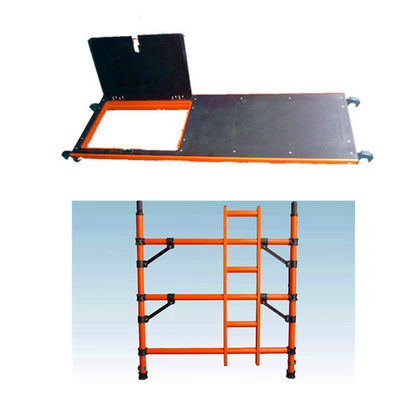

1. Structural components made by fiberglass Reinforce Nylon material with High Yield Stress and strain to resist strong impact force.
2. Main tube made by fiberglass reinforce resin material with high tensile strength.
3. Insulation scaffolding for easy operation, safest and highest rigidity utilizing worldwide.

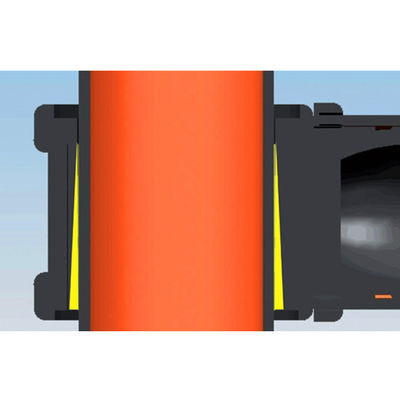

Non-Decending Joints
Patented unique stable wedge design assures Anti-Fall Connection with Superior Stable Fail Safe Performance distinguished overwhelms any other similar products.
Diagonal Struts
Built in diagonal struts minimize frame deformation and enable additional rigidity and best stability.
Innovative Patented Mobile Fiberglass Scaffold Tower with European CE certification ensures product deflection according to DIN4422, DIN4420 and design comply with European Standard EN1004:2004, certified by China National Electric Industry Quality Safety Equipment Control & Testing Centre.
Moreover, Leader's factory achieved certification with ISO 9001 International Quality Management Standard to evidence and guarantee this optimum Fiberglass Mobile Scaffold Tower System offer excellent stable performance with highest safety.
Guangzhou Leader Equipment Ltd. is a manufacturer with enormous experience proven expertise and capabilities in manufacturing and supplying Formwork and Scaffolding Systems. All products have Self Owned Patents, these include Leader’s SGF Superb Formwork System, GN50 Omni Scaffolding System, AMP Aluminium Prop & Panel Slab Formwork System, FRP Fiberglass Mobile Scaffold Towers, Aluminium Protection Net System, and also Personnel Access Equipment etc.
Our scaffold and formwork will be strictly inspected before packing and shipping out to insure that they could be satisfied with you.
Q: Are you a factory or trading company?
A: Professional Factory
Q: Where is your factory located? How can I visit there?
A: Leader is located in Guangzhou City, China, It takes only 40 minutes drive from Bai Yun International Airport. You are welcome to visit us!
Q: What is your product range?
A: Guangzhou Leader Equipment Ltd. is a manufacturer specialize in professional design and production of GN50 Aluminum & Steel Scaffold, Fiberglass Scaffolding, Aluminum Shoring & Slab Panel Formwork System, Superb Formwork System and Aerial Working Platforms etc.
Q: Do you accept OEM?
A: OEM is acceptable.
Q: What Payment terms do us accept?
A: T/T in advance (100%, 30% deposit+70% before shipment), LC.
